USB 3.0 Docking Station For USB-C And USB-A Laptops

Mounting under a table or fix on the side of table or wall . the MSLFORCE 's ODM/ OEM HUB combines cutting-edge DisplayLink technology with robust, user-friendly designs tailored for USB-C and USB-A Laptops and Computers. This hub's dual 4K60Hz support, secure connectivity, and broad compatibility make it a standout solution for high-performance environments.

Optimized the structure of HUB , which built-in USB3.2 Gen2 Female Port with a screw lock hole .  make it not only extension distance between the laptop and Mounting HUB , But also fix well the USB C cable to HUB  .

Main FEATURES

• Universal Compatibility:

Supports both Supports USB Type-C, Type-A and Thunderbolt 3 & 4 laptops and desktops.

Compatible with Windows, macOS, and Linux systems for wide adaptability.

• Comprehensive Port Options:

6 x USB Ports:

5x USB-A 3.0 Ports: High-speed data transfer up to 5Gbps, ideal for external storage, peripherals, or devices like keyboards and mice.

1x USB-C 3.0 Ports: High-speed data transfer up to 5Gbps for USB-C Devices.

1 x RJ45 Ethernet Port:

Provides a stable Gigabit Ethernet connection for fast, reliable networking.

2 x HDMI Ports:

Supports dual 4K@60Hz displays, perfect for extending or mirroring screens for multitasking or presentations.

Dual 4K@60Hz supported with laptops supporting DP 1.4 USB-C Alternate Mode. Dual 1920x1080@60Hz supported with laptops supporting DP 1.2

1080p/ 720p/480p are also supported.

1 x USB-C PD (Power Delivery):

Delivers up to 100W power, ensuring your laptop stays charged during operation.

• Secure and Durable Design:

Screw-lock feature on the USB-C host port prevents accidental disconnections, ensuring reliability during critical operations.

Durable construction supports frequent plug-and-play use in professional environments.

• 1. Plug all the necessary cable into the hub before fix the 10 in 1 USB C Docking Station (Model No: UCH-022-ProAV-DL6950A) such as : The HDMI to HDMI male to male HDMI1.4 or 2.0 cable , The Cat5/6/7/8 ethernet cable ,The PTZ Camera Logitech Meetup or Yealink UVC40.on USB3.0 Port. The keyboard and mouse on USB2.0 Port , The USB-C Flash Memory Sticker or USB C SSD Enclosure , The PD100W EU wall charger with Cable to the TYPE-C PD Port. The 3.5mm Audio Port to Soundbar and 3.5mm Micro Port to omnidirectional microphone or meeting microphone .

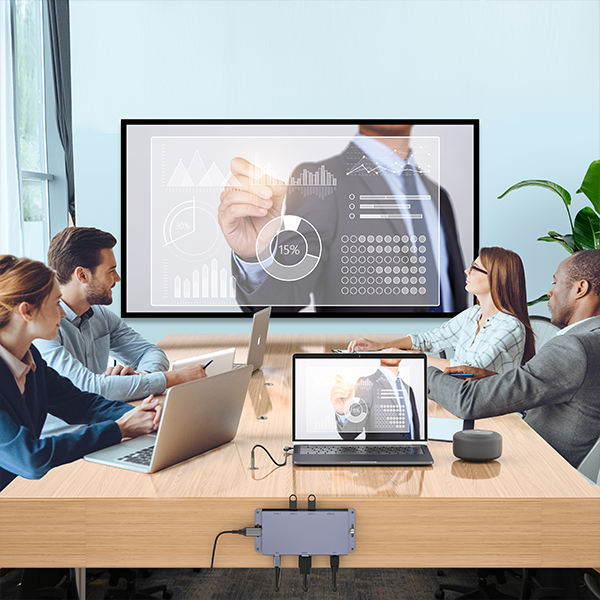

• 2.Use screws to fix the HUB to the back of the conference table or office desk or even fix on the wall .

• 3.Connect MSLFORCE Patented Desktop Socket with USB-C female to Male cable Design. To connect the HUB host port USB C full-featured Port.about USB C Table Socket For The Conference Room , Click the link to learn more .

• 4.Use a USB3.2 Gen2 Male to Male 1.2M cable or USB A to USB C Male to Male cable to connect the USB-C Table Socket to laptop or PC

• 5.Now you can enjoy the conference or meeting in your huddle room with the visitors. ( Easy switch to the new presentor and allows sharing the terminals devices for the new presentors . Simply plug out your USB C host cable  and plug into the new presentors's laptop with USB-C)



difference version of Model : UCH022





UCH-022-ProAV_DL6950A

UCH-022-ProAV_DL6950B

UCH-022-ProAV_SM768





comparison of product parameters

Products name	USB-C HUB For Conference System Dual HDMI 4K	USB-C HUB For Conference System Dual HDMI 4K	USB-C HUB For Conference System Dual HDMI 4K
Products model	UCH-022-ProAV_DL6950B	UCH-022-ProAV_DL6950A	UCH-022-ProAV_SM768
Products material	Aluminum casting	Aluminum casting	Aluminum casting
Main chip	DL6950 Synaptics	DL6950 Synaptics	SM768 Siliconmotion
HDMI resolutions	Dual 3840*2160@60hz refresh rate	Dual 3840*2160@60hz refresh rate	Dual 3840*2160@30hz refresh rate
USB Graphic Solutions	Support USB A 3.0 or USB C for displays	Support USB A 3.0 or USB C for displays	Support USB A 3.0 or USB C for displays
USB Ports	5xUSB A 1x USB C 5Gbps speed transmisson	1xUSB A 1x USB C 10Gbps speed transmisson 2xUSB A 2.0 Ports	1xUSB A 1x USB C 10Gbps speed transmisson 2xUSB A 2.0 Ports
Ethernet Port	1xRJ45 Ethernet Port	1xRJ45 Ethernet Port	1xRJ45 Ethernet Port
Mic & Audio	None	1x Mic + 1x Speaker	1x Mic + 1x Speaker
Power Delivery	PD100W power delivery	PD100W power delivery	PD100W power delivery
Memory Support	Supports 256MB internal DDR3 memory	Supports 256MB internal DDR3 memory	Supports 256MB internal DDR3 memory
Ultra quiet cooling fan	DC Fan size: 30*30*4mm. PWM (with stall, reverse, over-temperature protection) speed 8800 rpm	DC Fan size: 30*30*4mm. PWM (with stall, reverse, over-temperature protection) speed 8800 rpm	DC Fan size: 30*30*4mm. PWM (with stall, reverse, over-temperature protection) speed 8800 rpm
Modes:	Extended Desktop Single & Dual View, Clone,	Extended Desktop Single & Dual View, Clone,	Extended Desktop Single & Dual View, Clone,
System Interfaces	USB 3.0 Device Interface - Connect to USB Host PCI-Express Gen2 x1/x2 lane device slave Interface	USB 3.0 Device Interface - Connect to USB Host PCI-Express Gen2 x1/x2 lane device slave Interface	USB 3.0 Device Interface - Connect to USB Host PCI-Express Gen2 x1/x2 lane device slave Interface
Software Support	Microsoft® Windows™ Windows 10 Windows 8.1 Windows 7 Apple OS X/macOS Google Chrome OS Google Android Ubuntu Linux	Microsoft® Windows™ Windows 10 Windows 8.1 Windows 7 Apple OS X/macOS Google Chrome OS Google Android Ubuntu Linux	Windows operating systems: Windows 7, 8, 10, 11 and Windows Server 32-bit or 64-bit Linux OS (Ubuntu, Red Hat, SUSE, etc) macOS Android ChromeOS
Operation Temperature	Commercial (0°C to +70°C) Industrial (-40°C to +85°C)	Commercial (0°C to +70°C) Industrial (-40°C to +85°C)	Commercial (0°C to +70°C) Industrial (-40°C to +85°C)
Warranty	3years	3years	3years

The Model No: UCH022-ProAV_DL6950A is a Host Port USB C Female design , is an All-in-One Solution For Dual 4K60Hz UHD Video Conferencing systems . Connect all your equipment, just like you would with a docking station for your computer. This Docking station with Mounting bracket is designed to be fixed either under, or on top of, the desk to support all connections within a conference setting.ensuring flexibility, convenience, and top-notch performance.

Example Use Cases

• Corporate Meeting Rooms:

Connect a video bar, PTZ camera, and other peripherals to facilitate seamless video conferencing.

Extend the hub closer to displays or cameras for better cable routing.

Connect dual displays for enhanced meeting productivity and collaboration.

Integrate with USB peripherals like video conferencing cameras or speakerphones.

• Hybrid Workstations:

Supports employees who require dual monitors for multitasking during remote and in-office work.

• Training and Education:

Dual displays provide an ideal setup for classrooms or training sessions, allowing simultaneous presentation and notes.

• Home Office Video Conferencing:

Perfect for personal setups requiring professional-quality video and networking capabilities.
