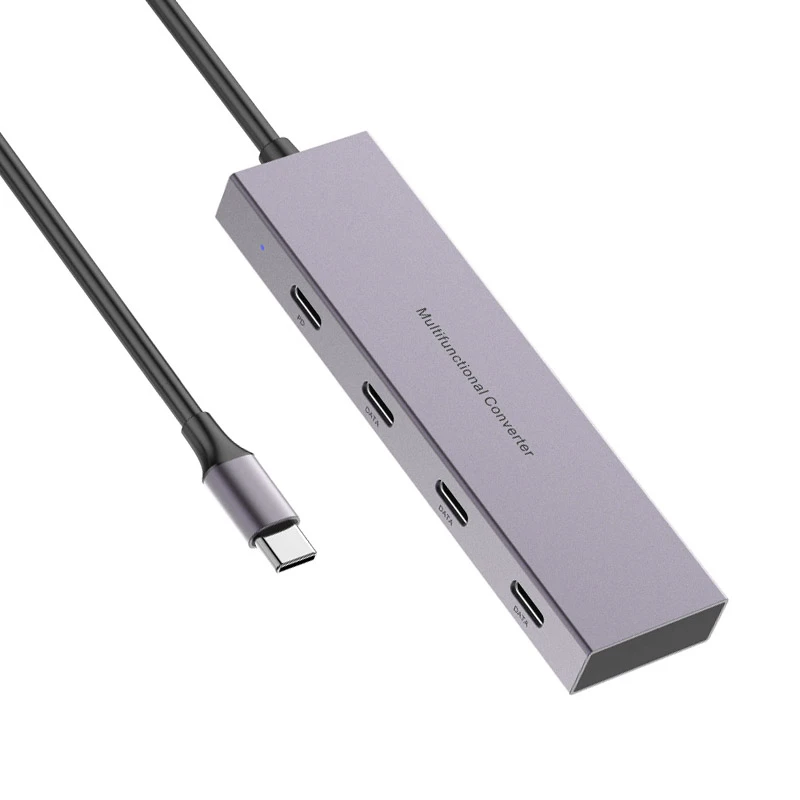

USB GEN2 TYPE C To 4 USB C 10G Data HUB

USB Gen2 Type C to 4x USB C female ports Data Hub

The bus-powered compact and comprehensive super fast data hub allows you virtually to connect all data transfer peripherals, including phones/tablets.

The hub is compatible with both new Gen2 USB peripherals as well as downwards compatible to legacy USB devices, max data tranfer rate up to 10Gbps(1280MB/s).

Extended connection for existing devices, such as a hard drive, SSD, USB flash,mouse, keyboard and/or printer.

USB Type-C Data Switch with CC Function for USB 3.1 Gen2 (10Gbps).

This Data HUB use the #via-labs chip , Model VL162
VL162 (B0)- USB-C™ 4:2 Data Switch with CC Function for USB 3.1

4:2 10Gbps USB Type-C Data Switch.Support up to 10Gbps. 2 Differential Channel, 2:1 MUX/DeMUX

Compatible with 10Gbps USB3.1 Gen2 . Low power consumption with 6mW active at device mode

High DC common mode voltage supporting to 2.0V. ESD > 2.5kV, CDM > 500V

integrated internal power switch support Vconn 5V supply and with over current protection. Means this Hub also supports downstream charging, limited to the capabilities of the source.

Features:

• 4 USB Gen2 Type C output ports

• USB 3.1 port and the max transfer speed up to 10Gbps(1280MB/s)

• USB 3.0 at speed up to max 5Gbps(640MB/s)

• USB 2.0 at speed up to max 480Mbps(60MB/s)

Applications:

• Extending of both USB C ports x4

• Connecting SSD drives, Hard Disks and/or USB-C Flash drives

• Connecting USB C Keyboard / mouse to Phones/Tablets

Available Interfaces

Input:

• 1x USB Type C(Male)

Output:

• 4x USB Type C (Female)
