USB 3.1 Type C to Mini Dp Adapter 4K Connector for MacBook

USB 3.1 Type C to Mini Dp Adapter 4K Connector for MacBook

USB 3.1 TYPE C cable , USB 3.1 TYPE C to Mini-DP 4k@60hz cable braided- 2M MSLFORCE is professional manufacturer for usb-c cable with mini displayport connector in china. with connectivity accessories, you can create home office workstations. Stay productive while telecommuting with docks, adapters, and hubs. Plug and Play. 5 Year Warranty.
Send Inquiry

Description

Technical Parameters

Through years of hard work, we now have a strong economic strength, a superb technical team and good after-sales service. We have not only achieved a good reputation in the USB C flash memory card reader, Thunderbolt 3 USB C Cable, 45w usb c pd travel chargers market, but also won a large number of partners. We provide you with not only products, but also high-quality solutions and product services. We will continue to uphold the service concept of 'meet customer requirements and exceed customer expectations'. We are looking forward to cooperating with you. Our company has always implemented the total quality management idea, conducted total quality management training for all the company's personnel, and formulated a detailed quality management system. We will always believe in and work on it.

USB 3.1 TYPE C To Mini DisplayPort Cable - MSLFORCE USB C 4K@60Hz Mini DisplayPort cable


USB CDP Alt mode over USB Type-C™ to Mini DisplayPort
MINI DisplayPortMax. 3840*2160 60Hz resolution
ChipsetVL100 , VL102
CableTPE Coating , Fabric Braided


Non-slip design of USB C port makes it a convenient to plug in and pull out

Upgrade version TYPE C and HDMI housing case be made of Aluminum alloy

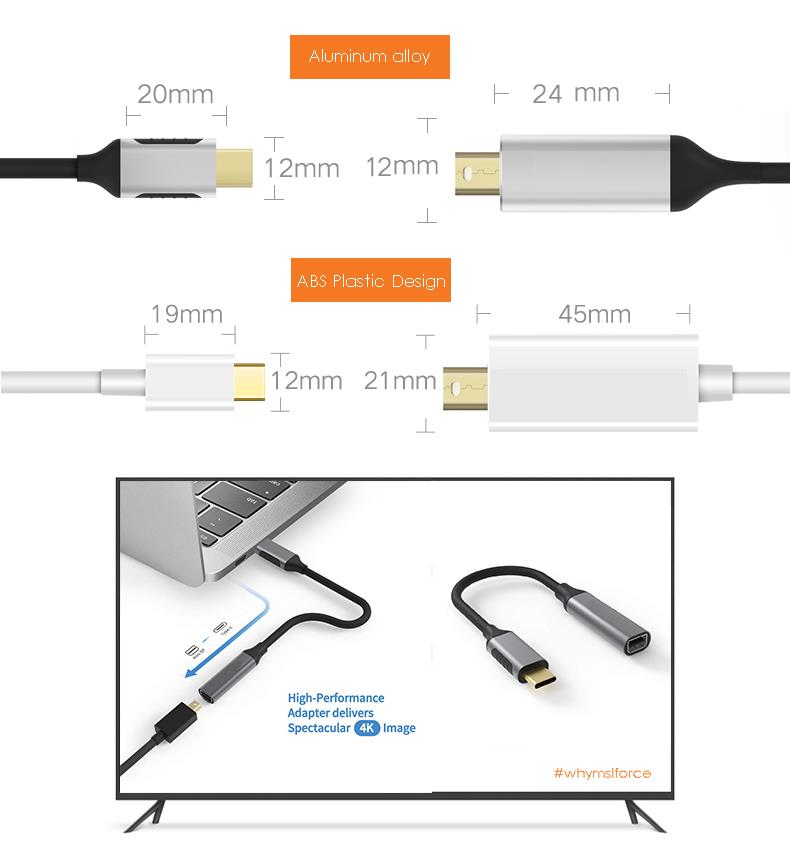

usbc2MDP2

Key Feature :

USB3.1 TYPE C to Mini DP cable , adapter

Core Wire : Tinned Copper

Connector: Gold-plating USB C , Mini DP

Cable Length: 1m , 2m , 3m

Cable body : TPE materials

Body : Aluminum alloy

mslforce-minidp

   CC Logic & PD Engine supporting one charging UFP and one sink port
- Compliant to USB Type-C Cable and Connector Specification Revision 1.1
- Compliant to USB Power Delivery Specification Revision 2.0 Version 1.1
- Integrated Type-C transceivers, supporting one charging UFP and one sink port
- DP mode Discovery/Enter/Exit
- DP configure & status update
- Built-in pull-up/pull down resistors, including Rp, Rd, and Ra DP Alt-mode Configuration
- Compliant to VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.0
- DFP_D Pin Assignment “C”, “D”, “E”, and “F”
- UFP_D Pin Assignment “C” and “D”
- Built-in Aux_CH switch
- DP source/sink connection detection Charging UFP Capability
- Charging connected PD hosts either by external power or through VL100’s Type-C sink port
- Support up to PD power Profile 4
- Support charging dead battery USB Billboard Device
- Compliant to USB Device Class Definition for Billboard Devices Revision 1.0a
- Integrated in-house USB2.0 PHY Fast 8051 Macro cell 80C32-Compatible Microcontroller
- Standard 1T 8051 instruction set
- Embedded Mask ROM and SRAM Built-in Voltage Regulators
- 5.0V to 3.3V LDO
- 3.3V to 1.8V LDO
- Auto power source selection between Vbus and Vconn GPIOs for Special Function and Control
- 10 GPIOs in QFN40 and 5 GPIOs in QFN32 for application customization
- One I2C master interface Misc
- Support external SPI flash for firmware upgrade Applications
- Type-C video adapters
- Type-C Multi-function docks

- Type-C TV, monitor, and projector

msl force

Compatible Models:

- Macbook Pro 2016/2017/2018, Macbook 12" - 2017 iMac with USB-C - ChromeBook Google Pixel - Dell Precision 15 3000/5000/7000 Series, Dell Precision 17 7000 Series -Surfacebook 2 - Dell XPS 12/13/15 - Alienware 13/15/17 - Lenovo T470/Yoga 900, Thinkpad P50/P70 - HP Zbook 15/17 For mobile phones and tablets, ONLY the following models are available (with DP Alt Mode) -2018 iPad pro -Samsung Galaxy S8 / S8 Plus/S9 / Note 8 -Huawei Mate 10 -LG G5,LG V20 -HTC 10,HTC U 11 -Lumia 950/950XL

Compatible Monitors :

Apple Cinema Display 27-inch (MC007LL/A) Apple Cinema Display 24-inch (MB382LL/A) Apple Cinema Display 30-inch (M9179LL/A), need an official Apple Mini DisplayPort to Dual-Link DVI Adapter Pre-2011 iMac equipped with Mini DisplayPort Other brands monitor with Mini DisplayPort/Displayport

NOTE: Incompatible Devices:

NOT compatible with Apple Thunderbolt Display(Apple 27" Thunderbolt Display MC914LL/B) NOT compatible with any Thunderbolt Devices / Monitors / Connectors / Cables / Hard Drives.(Mini DisplayPort and Thunderbolt are different)

SHOP NOW BY CLICK BELOWING PICTURE:

mslforce-cable


We take the high starting point, the high investment, the high quality as the development strategy, is takes the research and development, the manufacture, the sale and the after-sales service as a body USB 3.1 Type C to Mini Dp Adapter 4K Connector for MacBook manufacture enterprise. We are in line with the purpose of establishing a good long-term cooperative relationship with customers, and constantly forge ahead to develop and manufacture new products. With the tenet of integrity, high efficiency, unity and innovation, we promise to wholeheartedly create long-time value to our clients.
