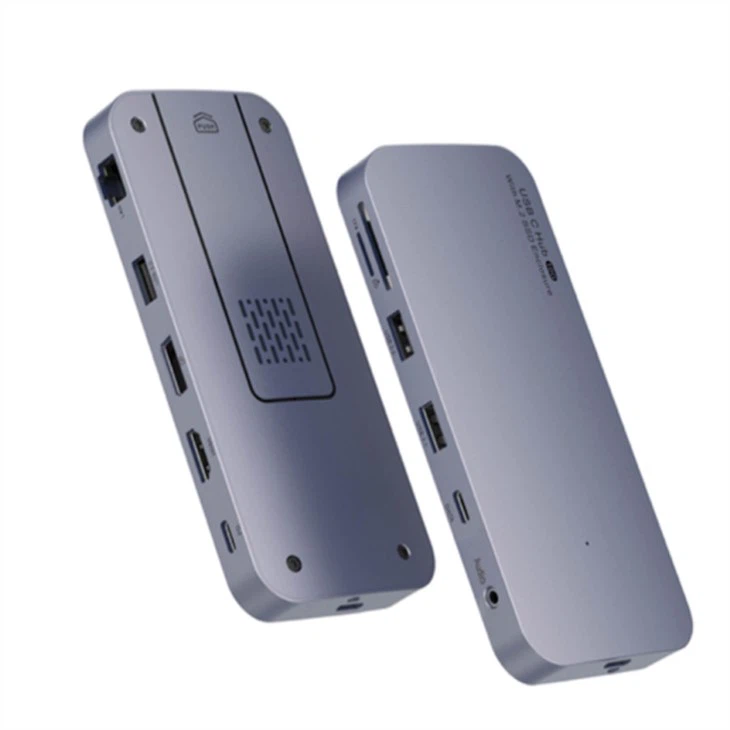

USB 4 HUB Dual 4K Display Compatible TB4 TB3 And Apple M1
Description
Technical Parameters
Since Intel donated the thunderbolt 3 to the USB IF Association, it has been pushing its own Thunderbolt4 technology, and the Thunderbolt4 standard has double 4K output and Thunderbolt 4 docking stations in terms of expanding performance. Intel said that the thunderbolt 4 interface mainly improves the compatibility, reliability and security, improves the link capability, is compatible with USB4, DisplayPort and PCI Express (PCIe) through the usb-c physical interface, and is fully compatible with the previous generation of thunderbolt and USB products. we MSLFORCE Keep close monitor to market trend and launch the 1st USB4 HUB in a compact meansure Belowing !
SINGLE 8K OR DUAL 4K 60HZ DISPLAYS
When it comes to connecting a monitor . See it's outstanding visual clarity.
Single Monitor
If you’re looking to add a single monitor to the USB4 HUB you can either connect it to the DisplayPort connector , Resolution upto 8K. If you wish to connect a HDMI monitor , Resolution to 4K@60Hz
Dual Monitors
macOS users on M1 Pro, M1 Max, or Intel based Macs can connect up to dual displays.
M1 based Macs do not support dual monitors through their Thunderbolt ports.
Windows PC Thunderbolt 3 and Thunderbolt 4 users can connect up to dual displays.
| Product Name | USB4 Dock 12 in 1 Design |
| Upstream | Thunderbolt 3/4/USB-C Gen2 |
Downstream Single output | DisplayPort output only - Resolution upto 8K |
| HDMI output only - 4K@60hz | |
| Simultaneously output | DP + HDMI simultaneously Display 4K@60Hz |
| Ethernet Speed | 1000Mbps Ethernet RJ45 slot |
| Data speed of USB TYPE-A | USB TYPE-A 5Gbps 3.0 x2 / USB TYPE-A 10G 3.1 x1 |
| Data speed of USB TYPE-C | USB TYPE-C 10G 3.1 x1 |
| Audio Slot | 3.5mm audio Slot |
| M.2 SDD Enclosure | M.2 PCI-E provide by USB 4 Chip |
| Card Reader | SD / Micro SD simultaneously Read and Write |
| Type-c Power Delivery | PD20V5A@100W Power through |
UNIVERSALLY COMPATIBLE
Having the ability to use on any Type-C computer or tablet is incredibly convenient.
Compatible with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C computers, List belowing
Thunderbolt 4 PC
Intel Thunderbolt 3 Mac¹
M1 Pro & M1 Max Thunderbolt 4 Mac¹
M1 Thunderbolt 3 Mac¹
Thunderbolt 3 PC
USB4 PC
USB-C PC
USB-C Windows Tablet
Thunderbolt or USB-C iPad²
Thunderbolt or USB-C Chromebook
