8K30Hz HDMI RJ45 USB C HUB Gen2 10Gbps Type-C
Description
Technical Parameters
Introducing The MSLFORCE OEM Introducing the USB-C Hub Multiport Adapter with a 9-in-1 design featuring Dual HDMI outputs,10Gbps USB-A HUB x 2 and 10Gbps USB-C HUB x1, USB 2.0 TYPE-A x2 , Gigabit Ethernet x1, and Power Delivery x1. This 9 in 1 compact travel HUB combines extensive functionality and portability, ideal for users who need a versatile, high-performance hub.
Key Features and Benefits
-
This 9-in-1 USB-C Hub with dual HDMI outputs and 10Gbps Ethernet is a comprehensive solution for users who demand connectivity, speed, and convenience in a compact form factor. It's a perfect fit for professionals in creative, tech, Meeting Room and multitasking roles.
Specifications
-
Advanced Tech 9-in-1 USB-C Hub 8K HDMI: Gathering 1 x 8K @ 30Hz HDMI, 1 x 4K @ 60Hz HDMI ,1 x 100W PD , 2 x USB-A 10Gbps , 1 x USB-C 10Gbps and 2x USB A 480Mbps 2.0 hub and 1xEthernet RJ45 Gigabit ports in this Compact USB C dock. ideal for professionals and tech enthusiasts. Compatible with USB-C & Thunderbolt 3/4 laptops.
8K USB C Hub 2 monitor : For Windows Laptop,Support MST and SST(Mirror & Extend Mode).For Mac OS ONLY support SST(Mirror),Not support MST(Extend ).Dual HDMI adapter supports up to 8K30Hz,provides the exceptional stunning and lifelike images, allowing you to capture flawless details.
About the 8K HDMI Video Output Port (IMPORTANT):
• To achieve optimal UHD 4K 120Hz / 8K 30Hz, please use with 8K monitor or 8k TV and 8K HDMI cable(HDMI2.1 or above). At the same time, the laptop should (DP1.4 version) to support 8K video output such as ThinkBook 13x / Yoga 14s
• 8K 30HZ/ 4K 120Hz/ 4K 60 Hz is only available for laptops with DisplayPort 1.4 and 8K. If your laptop is DisplayPort 1.2, it can only reach 4K 60 Hz
• 4K 120Hz and 8K support must be manually enabled on some 4K 120Hz and 8K televisions
• The Max resolution and refresh rate output of this thunderbolt 4 Hub depends on the USB-C host devices, HDMI cable and the display
NOTE:
• Due to specification limited, almost Macbook, Macbook Pro, and Mac Mini with Apple M1 M2 or Intel chips doesn't support 8K at present, the resolution will depends on the maximum supported by MacBook.
-
Gigabit Ethernet & Data Port:
This universal 9 in 1 USB C docking station boasts a built-in Gigabit RJ45 Ethernet port, ensuring stable and high-speed network connections. It features two 10Gbps USB A ports and a 10Gbps USB3.2 Gen2 TYPE-C port for rapid file transfers, plus two USB 2.0 ports for easy connection of keyboards, mice or Bluetooth devices. making it an ideal solution for both home and office use.
-
Additional Ports for Versatility:
USB-C Power Delivery (PD): Unlock seamless productivity with this comprehensive USB-C laptop docking station, offering an audio/mic port and up to 100W of USB-C charging. It ensures consistent power delivery for laptop work or dual-display setups.
-
23cm FPC (Flexible Printed Circuit) Cable:
Flexible and Durable: The built-in FPC cable is foldable and designed to withstand repeated bending, making it perfect for on-the-go users.
Space-Saving Storage: The 23cm length is compact enough to fit easily in a pocket or digital storage bag, allowing effortless portability.
-
Multiport Design: The 9-in-1 setup provides everything you need for a full-featured workstation, whether at home, in the office, or while traveling.
-
Plug-and-Play Compatibility:
Cross-Platform Support: Compatible with macOS, Windows, and Linux, making it easy to use across multiple devices without extra drivers.
FAQ
Q: Is this 9 in 1 USB-C docking station compatible with my laptop??
A: Only works if your laptop's USB-C port is DP ALT mode. also means support charging, data transfer, and video output simultaneously, can you fully utilize the features of this USB-C docking station, for example, USB4, Thunderbolt 3/4, Type C 3.1/3.2 Gen 2 with Power Delivery & Display functions.
Q: Why there is no video output when i connect it to my laptop?
A: 1.Please make sure your host supports DisplayPort Alternate Mode (Alt Mode) video output functionality. 2.Please use the standard HDMI cable. 3.Please check if the cables are well connected. 4.Please make sure to select the correct input source for your HDMI monitor.
Q: How to Set Up Displays on Windows and Mac Operating Systems?
A: Windows OSGuide:Right click desktop> Graphic Setting> Display> Extended Desktop
Mac OS Guide:Apple logo> System Preferences>Display>Mirror Display(Yes or Not)
NOTE:Mac OS only supports a single display (Mirror Mode) and does not support multiple displays (Extended Mode).
Products advantage
craftsmanship-grade aluminum housing:
The 9-Port USB-C Docking Hub features craftsmanship-grade aluminum housing, combining elegance, durability, and functional benefits that enhance both the look and performance of the device.
Scratch and Corrosion Resistant:
Long-Lasting Finish: The anodized aluminum surface resists scratches and corrosion, keeping it looking pristine over time.
With its high-quality aluminum housing, this dock not only performs reliably but also serves as a stylish and durable accessory in any setting.
Enhanced Durability & Resistance to Bending
Flexible Printed Circuit (FPC) cables bring several advantages to cable adapters, enhancing both their functionality and durability. Flexibility and Bendability & Durability & Improved Signal Integrity & Lightweight & Enhanced Heat Dissipation .These advantages make FPC cables a strong choice for high-performance adapters, especially those used in gaming, streaming, and professional applications that require stable and fast connections in a compact, durable package.
Powerful & well known chip provider

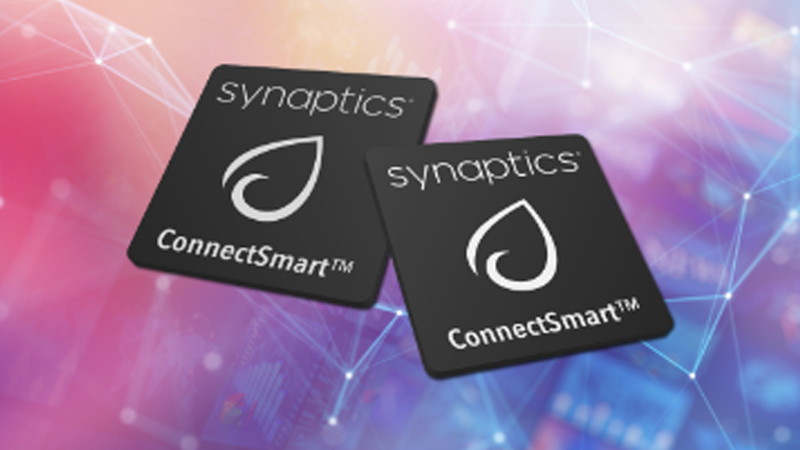

The VMM6210 is an advanced video interface chip developed by Synaptics, designed to support high-resolution displays including 8K and 10K. It's part of the Cayenne family of USB-C-based video interface solutions, which are notable for their integration of HDMI 2.1 and DisplayPort Alt Mode 2.0 standards, allowing for high bandwidth video performance. This chip can be used in various applications, including docking stations, video hubs, and protocol converters.
Exquisite PCB Craftsmanship
Thanks to advanced PCB design, this hub provides highly reliable and stable data transmission. The precision layout minimizes signal loss and enhances data integrity, ensuring smooth, uninterrupted connections for all connected devices, even in data-heavy applications. Whether streaming 4K video, transferring large files, or working on intensive tasks, this device supports consistently high performance and stability.
Ultra-slim & Portable Size:
The 9-Port USB-C Docking Hub is powered by the advanced VMM6210 8K chipset, which ensures high-performance display capabilities and seamless multitasking support . during to ultra-slim and portable size, making it an ideal accessory for those who need connectivity on the go.The ultra-slim profile takes up minimal space, fitting easily into laptop bags, backpacks, or even pockets, making it highly convenient for travel or hybrid work setups.
The portable and sleek casing design of this 9 in 1 USB hub makes it perfect for students, professionals, and digital nomads who need a reliable yet compact connectivity solution.
techology parameters:
| Interface | USB 3.2 Gen 2 (3.1 Gen 2) Flexible Printed Cable |
| Total Port Quantity | 9 ports output Simultaneously |
| Downward interfaces | 2xHDMI , 1xRJ45 , 4xUSB A , 1xUSB C , 1xTYPE C PD |
| Chipset: | VL102+VL822+GL850+RTL8153B+VMM6210+MP9247 |
| HDMI Resolution |
HDMI 1 at 8K 30Hz and HDMI 2 at 4K 60Hz outputs When simultaneously connect , Both at 4K 60Hz refresh rate |
| RJ45 Ethernet | Gigabit Ethernet / 1000Mbps |
USB 3.2 Gen 2 Type-A ports quantity |
2xUSB A 10Gbps data port |
| USB 3.2 Gen 2 Type-A ports quantity | 1x USB C 10Gbps data port |
| USB 3.2 Gen 2 Type-A ports quantity | 2x USB A 2.0 480Mbps data port |
| TYPE_C PD port | 1x TYPE-C 12pin Power Delivery port |
|
Chipset : VMM6210 is a highly integrated USB-C alt-mode MST hub featuring HDMI2.1 and DP1.4a audio-video ports.It offers the maximum bandwidth and advancedfeatures from the latest video interface standards. this 9 in 1 Dual HDMI version, we change one line DP1.4a to HDMI port. then active Dual HDMI video output
For more informations , check website at www.synaptics.com |
|
| Product Dimensions : | |
product Depth |
114 MM |
| product Width | 50 MM |
| product Height | 17.8 MM±1MM |
| Product color | Apple Grey & Apple Silver |
| Weight : |
0.108kg±20g |
| PCB Size: | 4.28×10.65cm |
| PCB Color: | Blue PCB Ink |
|
|
|
At MSLFORCE, we also understand that quality begins at the source, and we place a strong emphasis on using high-quality connectors of USB C / RJ45,HDMI2.1 Connectors , USB3.2 Gen2 TYPE-A and also the PD connector to ensure durability, reliability, and consistent performance across all products, especially in our High performance USB-C hubs and docking solutions.
