8K DisplayPort HDMI Dock Station Expand To 17Ports For Daily Use
Description
Technical Parameters
DisplayLink 4K Docking Station With Triple Monitor Displays and 120W Power Adapter for MacBook Windows Thunderbolt 3/4 use.
Drived By DisplayLink 6950 USB Video Graphic Chipset with 20V6A DC Charging Port
Compatible with MacBook M1/M2/M3/Windows OS
| Port 1 : | Switch ON/OFF |
| Port 2 : | Indicator LED light Green color |
| Port 3 : | 3.5mm Audio support Microphone and Audio |
| Port 4: | USB C 3.0*2: Support d a t a transfer a n d PD 18W output |
| Port 5: | USBA3.2*3:Speedupto10Gbps |
| Port 6: | SD/microSD 3.0 Slot: Support SD&TF work simultaneously |
| Port 7: | Dsplay 1: HDMI 1or DP 1, resolution up to 4K@60Hz (driver-based) |
| Port 8: | Display 2: HDMI 2 or DP 2, resolution up to 4K@60Hz (driver-based) |
| Port 9: | Display 3: DP 3 resolution up to 8K@30Hz (Plug-and-Play) |
| Port 10: | Display 4: HDMI 3 resolution up to 8K@30Hz (Plug-and-Play) |
| Port 11: | DC Port: Connect the AC power adapter, 100W output for charging laptop |
| Port 12: | USB A 3.2: Speed up to 10Gbps |
| Port 13: | LAN Port: Speed up to 1000Mbps |
| Port 14: | HOST Port: Connect to the laptop |
| Vdieo Port combo : | Connect display 1 via HDM 1 or DP 1 port (©), connect display 2 via HDMI 2 or DP 2 port(®), connect display 3/4 via HDMI 3 and DP 3 port(9. 10) |
Accessories :
DisplayLink 6950 Docking station x 1PCS
20V6A@120W Power adapter + EU cordx 1PCS
USB A to USB C Female 10Gbps adapter with Chipset and USB C male to USB C male cable 1M x 1PCS
1. you can refer the picture belowing - our private design , an ideal accessories for the Docking Station drived by DisplayLink Chip
| interface 1 | USB A male to USB C female |
| Interface 2 | USB C male to USB male |
| Data transmission speed: | 10Gbps USB A to USB C with Chipset VL162 |
| Data transmiss speed: | 20Gbps USB C to USB C Full-Features cable |
2. you can also use our USB A to USB C 10Gbps adapter with keychain design to convert to Laptop with USB TYPE-A 3.0 port
Warm Tips about the resolution under DP1.2 or DP1.4 Host:
1: HDMI 1and DP 1cannot be used at the same time
2: HDMI 2 and DP 2 cannot be used at the same time
3.Full-function windows Laptop can extend up to 4 monitors,Must confirm laptop's USB-C port DP ALT MODE. if without DP ALT mode, Then HDMI3+DP3 cannot work.
4.MacBook only can extend up to 3 displays, DP 3 and HDMI 3 cannot work simultaneously

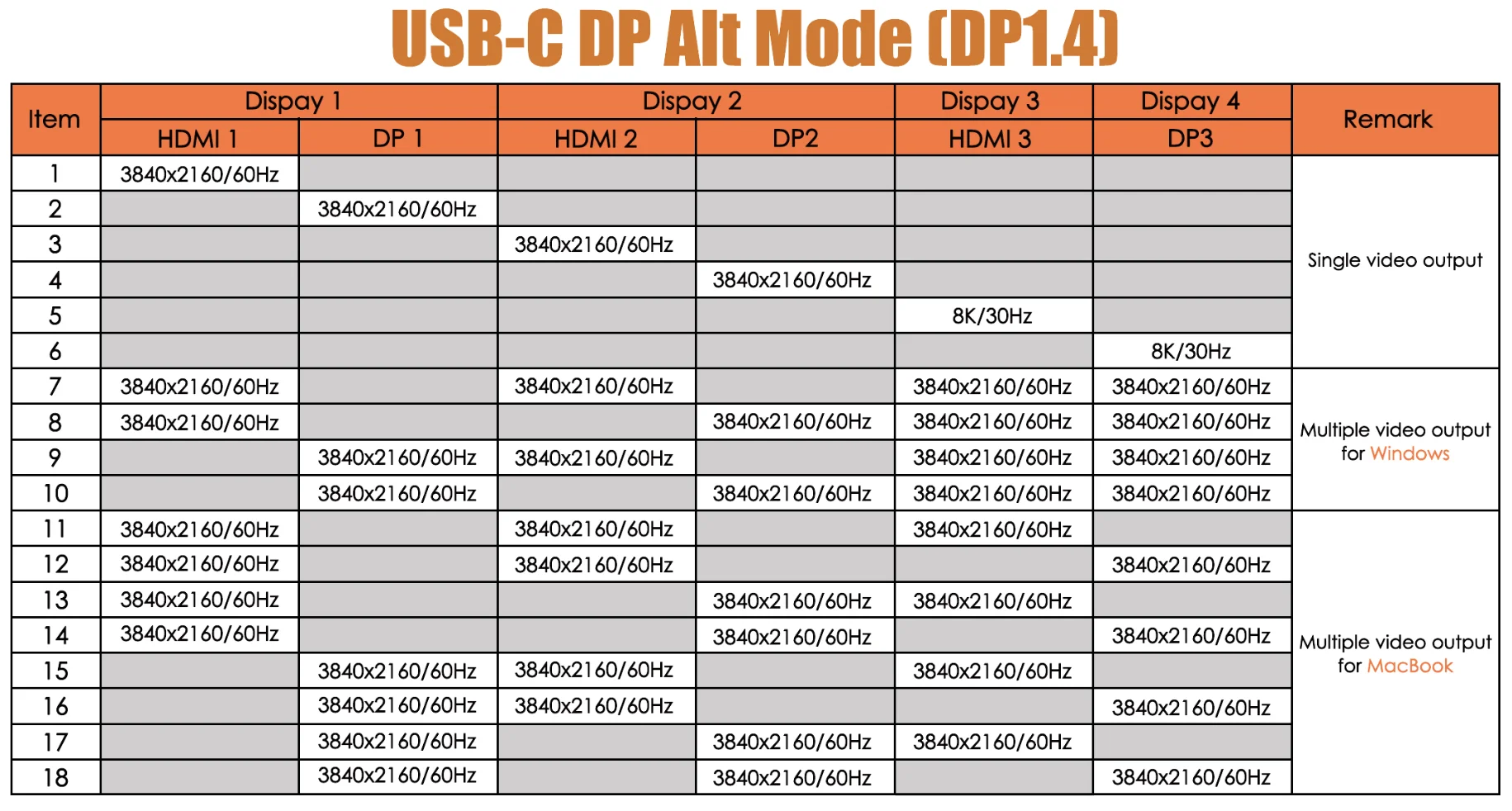

5.When your Host of USB C is DP1.4 upstream ,the Resolution are belowing for reference.If DP11.2 version,The resolution will reduced by one level at 30Hz.
Fore more informations about the user manual and artwork design. you can contact us by Email.
