2-Port DisplayPort MST HUB - DP1.4 Multi-Monitor Video Adapter
Description
Technical Parameters
This DisplayPort to DisplayPort MST Hub enables a connection to two DP monitors, using a single DisplayPort enabled host device.
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
| Host port | Max. resolution output 1 | Max. resolution output 2 | Tested Graphics / Processor |
| DisplayPort1.4 with DSC | 5K 60Hz | 5k 60Hz | Intel 11th Gen with DSC Intel 12th Gen Processors & Later Dedicated AMD & Nvidia GPU's that support DSC |
| DisplayPort 1.4 | 4k 60Hz | 4K 60Hz | Intel 10th Gen (Ice Lake Only) Intel 11th Gen Processors & Later Dedicated AMD and Nvidia GPU's that support DP 1.4 |
| DisplayPort 1.2 | 4k 30Hz | 4k 30Hz | Intel 8th - 10th Gen Processors & Later |
MULTI-MONITOR CONFIGURATION: DisplayPort to Dual-DisplayPort MST Hub drives up to two 4K 60Hz displays from a DP 1.4 host; USB Powered; Supports HDR and 2ch Audio; HDCP 2.2; Backwards compatible with DP 1.2 hosts at lower resolutions
IT PRO PERFORMANCE: Increase productivity by adding two extended/mirrored displays to a Windows desktop; Utilize integrated or discrete GPU (Intel, AMD, or Nvidia) capabilities enabling high performance graphics, with minimal CPU usage; No driver required
HARDWARE COMPATIBILITY: Windows computers with dedicated GPUs/11th gen & up Intel Processors featuring DP 1.4 support dual-4K 60Hz monitors; DP 1.4 with DSC required for dual-5K 60Hz; See resolution chart for a list of other supported configurations
EXTRA-LONG CABLE: 1ft (30cm) built-in cable provides extended reach and reduced port strain, enabling flexible placement of the adapter; Adapters with short cables provide no flexibility in placement, adding clutter and cables to the workspace
CONNECTIVITY TOOLS: Our app with Windows Layout Utility (available for download) restores locations of windows when re-connecting the adapter; Windows does not natively restore app window locations when disconnecting and reconnecting external monitors
More Resolution : it also spport dual 1080p@144hz displayports when connected to a DisplayPort1.4 host
| Connector | Connector A : 1 -DisplayPort / additional powered by USB-C 5V3A |
| Connector B : 2-DisplayPort | |
| Hardware | Active Adapter |
| DisplayPort 1.4/1.2 AV input | |
| DisplayPort 1.4 AV output 3840X2160(4K)/60Hz | |
| Support Audio - 2 channel Audio via DisplayPort | |
| Chipset ID : Synaptics-VMM5220 | |
| Materials : Aluminum + Plastic |

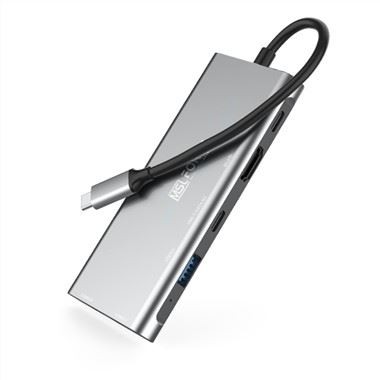

Also The USB-C To 2x DisplayPort or USB-C to 2x HDMI MST Video adapter . you can click the photo belowing to lead you to
Learn more ......
